Sub Task Board Documentation : Technical Information for Admins

Overview

The Jira Subtask Board app runs in complete isolation from other apps, other Jira instances, and external systems. This document explains the multi-layered isolation architecture that ensures your data remains secure and private.

Key Principle: Each installation of the Subtask Board app operates in its own isolated sandbox. Your data never leaves Atlassian's infrastructure, is never shared with other customers, and cannot be accessed by other apps.

How Isolation Works

1. Atlassian Forge Platform Isolation

The Subtask Board app is built on Atlassian Forge, Atlassian's secure cloud app platform. Forge provides built-in isolation at multiple levels:

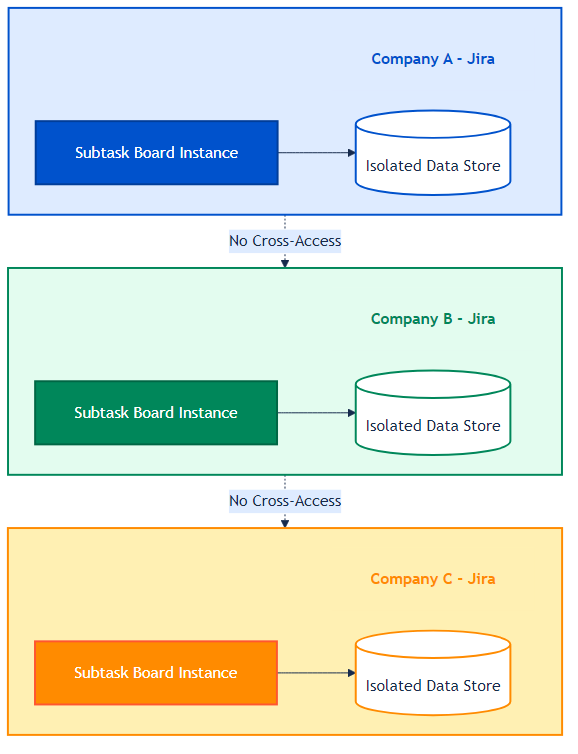

2. Per-Installation Data Isolation

Each Jira Cloud instance that installs the Subtask Board app gets a completely separate data store. There is no data sharing between installations.

Guarantees:

• Company A cannot see Company B's settings or data

• Each installation has a unique identifier

• Uninstalling the app removes all data for that installation

• Data remains within your geographic region per Atlassian's data residency policies

3. Project-Level Data Isolation

Within your Jira instance, the app further isolates data by project and board:

The app cannot:

• Access data from projects the current user doesn't have permission to view

• See private issues the current user cannot access

• Bypass Jira's built-in permission schemes

Data Storage Architecture

Where Your Data Lives

The Subtask Board app stores data in three secure locations, all within Atlassian's infrastructure:

1. Forge App Storage (Global Settings)

Storage Key: global-settings
Contents: { enabledByDefault: true/false }
Access: App-level only
Encryption: Atlassian-managed encryption at rest

What's stored: The global admin setting for default app visibility.

Isolation: This storage is completely isolated per app installation. Other apps cannot read or write to this storage.

2. Jira Entity Properties (Project Settings)

Property Key: berecom.subtaskboard
Entity: Project
Contents: enabled | disabled
Access: Project administrators

What's stored: Per-project visibility overrides and board customizations (colors, display settings).

Isolation: Data is namespaced with com.berecom.subtaskboard.* prefix. Only this app can read/write these properties.

3. Forge Custom Entities (Board Data)

Entities:
├── team_availability (boardId, sprintId, userId, availableDays)
├── team_capacity (projectKey, capacity data)
├── board_color (boardId, columnId, color)
└── board_setting (boardId, settings)

What's stored: Team capacity planning data, custom column colors, board display preferences.

Isolation: Each entity is indexed by boardId or projectKey, ensuring data from one board/project cannot leak to another.

Security Architecture

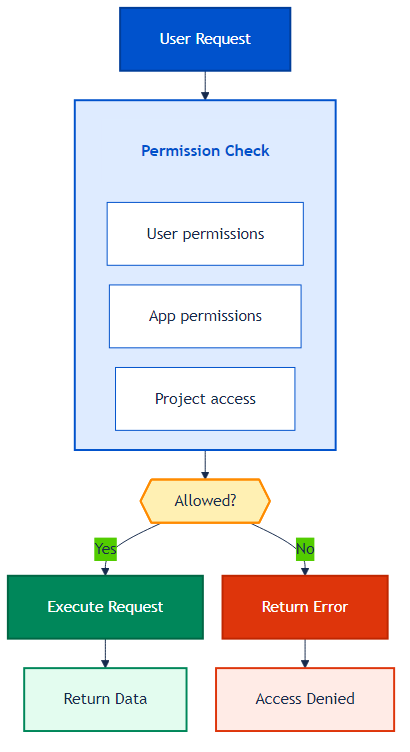

Permission Model

The app uses Atlassian's Scoped Permissions model. This means:

1. Declared Permissions: The app must declare every permission it needs in advance

2. User Approval: Administrators approve these permissions during installation

3. Runtime Enforcement: Atlassian enforces these permissions at runtime

What This Means for Admins

Runtime Isolation

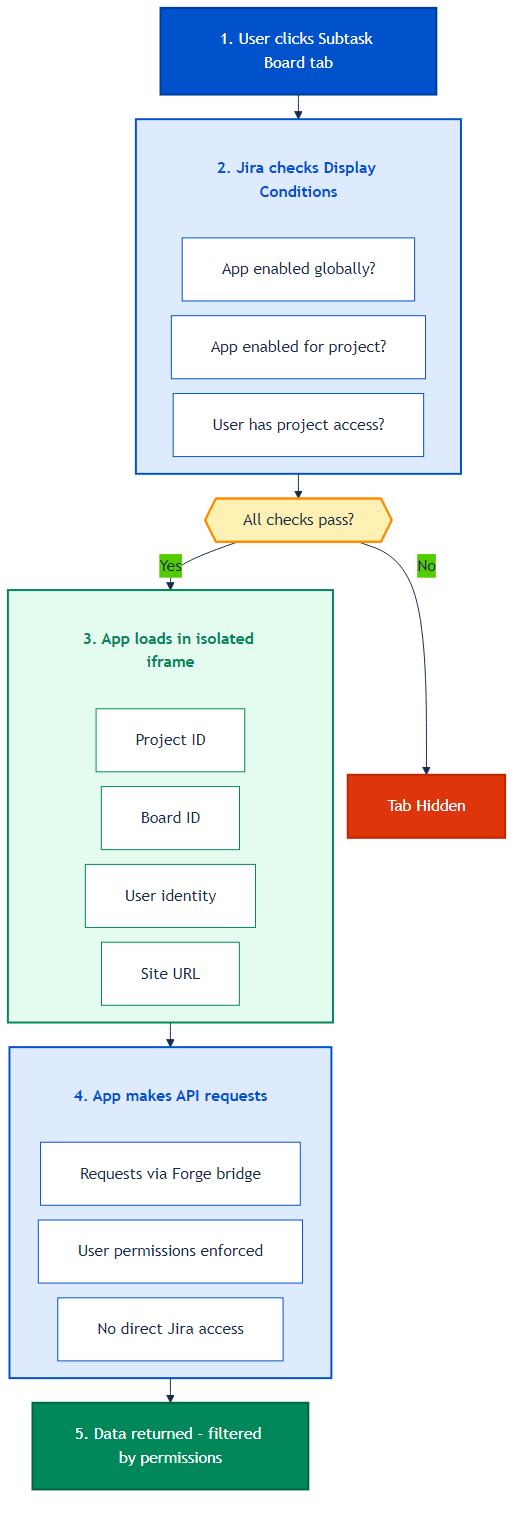

How Each Request Is Handled

When a user interacts with the Subtask Board, here's what happens:

Container Isolation

Each app execution runs in an isolated container:

If the app attempts to exceed these limits, Atlassian terminates the execution.

Administrative Controls

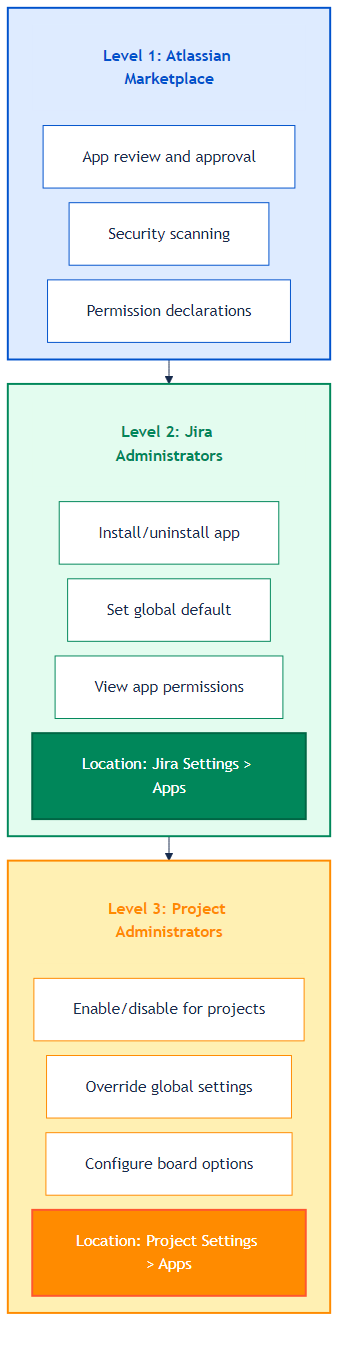

Three Levels of Control

Visibility Control Matrix

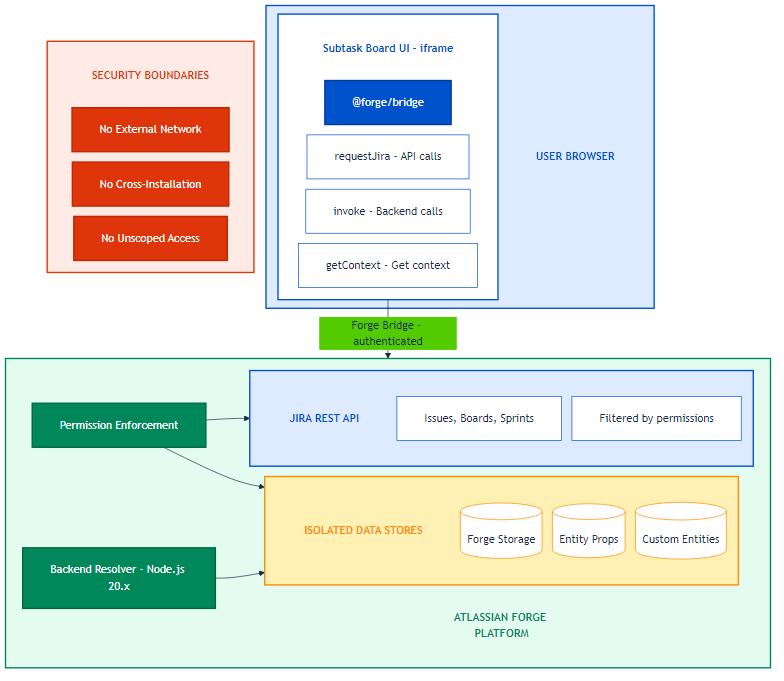

Data Flow Diagram

Key Security Boundaries:

• No External Network Access

• No Cross-Installation Data Sharing

• No Unscoped Jira Access

Compliance & Audit

What Admins Can Verify

1. Permission Scopes: View all declared permissions in Jira Settings → Apps → Manage apps → Subtask Board (see: Permission Scopes of Subtask Board)

2. Data Residency: Data follows your Atlassian organization's data residency settings

3. Access Logs: Jira audit logs capture app-related activities

Atlassian's Security Measures

• App Review: Forge apps published on the Atlassian Marketplace are subject to Atlassian’s app security and review processes.

• Static Analysis: Atlassian and the app developer use automated checks and security tooling to detect common vulnerabilities.

• Runtime Monitoring: Atlassian monitors the Forge platform and app executions for abuse and suspicious activity.

• Automatic Platform Security Updates: Atlassian maintains and patches the underlying Forge platform and infrastructure

Frequently Asked Questions

Q: Can the app access data from other Jira instances?

A: No. Each installation is completely isolated. Your instance's data cannot be accessed by any other installation.

Q: What happens to data if we uninstall the app?

A: All app-specific data (stored in Forge storage and entity properties) is deleted. Your Jira issues and native data are unaffected.

Q: Can the app developer see our data?

A: No. The developer has no access to customer data. All data is encrypted and stored within Atlassian's infrastructure with no external transmission capability.

Q: Is data encrypted?

A: Yes. All data stored in Forge storage is encrypted at rest using Atlassian's encryption infrastructure.

Q: Can other Forge apps access Subtask Board data?

A: No. Forge storage is namespaced per app. Other apps cannot access Subtask Board's storage namespace.

Q: What network access does the app have?

A: The app has no outbound network access. It can only communicate with Jira APIs through Forge's authenticated bridge.

Q: How does the app handle multiple projects?

A: Each project's data is scoped to that project using project keys and board IDs. The app cannot access data from projects the user doesn't have permission to view.

Q: Is there a way to audit what the app is doing?

A: Yes. App activities that modify data appear in Jira's audit log. You can also review the app's declared permissions at any time.

Summary

The Jira Subtask Board app provides enterprise-grade isolation through:

Bottom line: Your data is secure, private, and isolated. It never leaves Atlassian's infrastructure, cannot be accessed by other customers, and is protected by multiple layers of security.

Questions

Please contact: Support
